The innovative Cat 300.9D VPS with HPU300 Mini Excavator delivers versatility in a compact size with a choice of diesel or electric power. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
OPERATING SPECIFICATIONS - 300.9D VPS:
Dumping Height - Maximum | 80.0 in |
Reach at Ground Level | 119.0 in |
Digging Depth | 68.0 in |
Stick Force | 1012.0 lbf |
Bucket Force | 2000.0 lbf |
Engine Model | Yanmar 3TNV70 |
Net Power | 13.0 HP |
Gross Power | 13.0 HP |
Engine Type | Liquid Cooled, 3 Cylinder, |
Fuel Tank Capacity | 2.6 gal (US) |
Operating Weight | 2399.0 lb |
Length X Width X Height | 2476 X 700 X 1507 mm (108 X 28 X 59 in) |
Operating Weight | 2399.0 lb |
Shipping Weight | 2178.0 lb |
Operating Pressure - Swing Gear | 1015.0 psi |
Operating Pressure - Front Linkage and Travel | 2466.0 psi |
Rotation Speed | 8.0 r/min |
Pump Type | Gear |
Pump Flow | 6.0 gal/min |
Hydraulic Tank Capacity | 3.7 gal (US) |
Length X Width X Height | 930 X 720 X 1000 mm (36.5 X 28.3 X 39.5 in) |
Operating Weight | 423.0 lb |
Lift Height | 8.0 in |
Dig Depth | 7.0 in |
Width | 28.0 in |
Height | 8.0 in |
Flow Rate | 5.3 gal/min |
Hydraulic Oil Tank Capacity | 2.4 gal (US) |
Connecting Hose Length | 232.8 ft/td> |
Operating Pressure | 2756.0 psi |
Performance | 10.0 HP |
Input Current | 16A |
Connecting Hose Length | 232.8 ft/td> |
Motor Type | 3 Phase Electric Motor |
Travel Speed | 1.1 mile/h |
Track Width | 7.1 in |

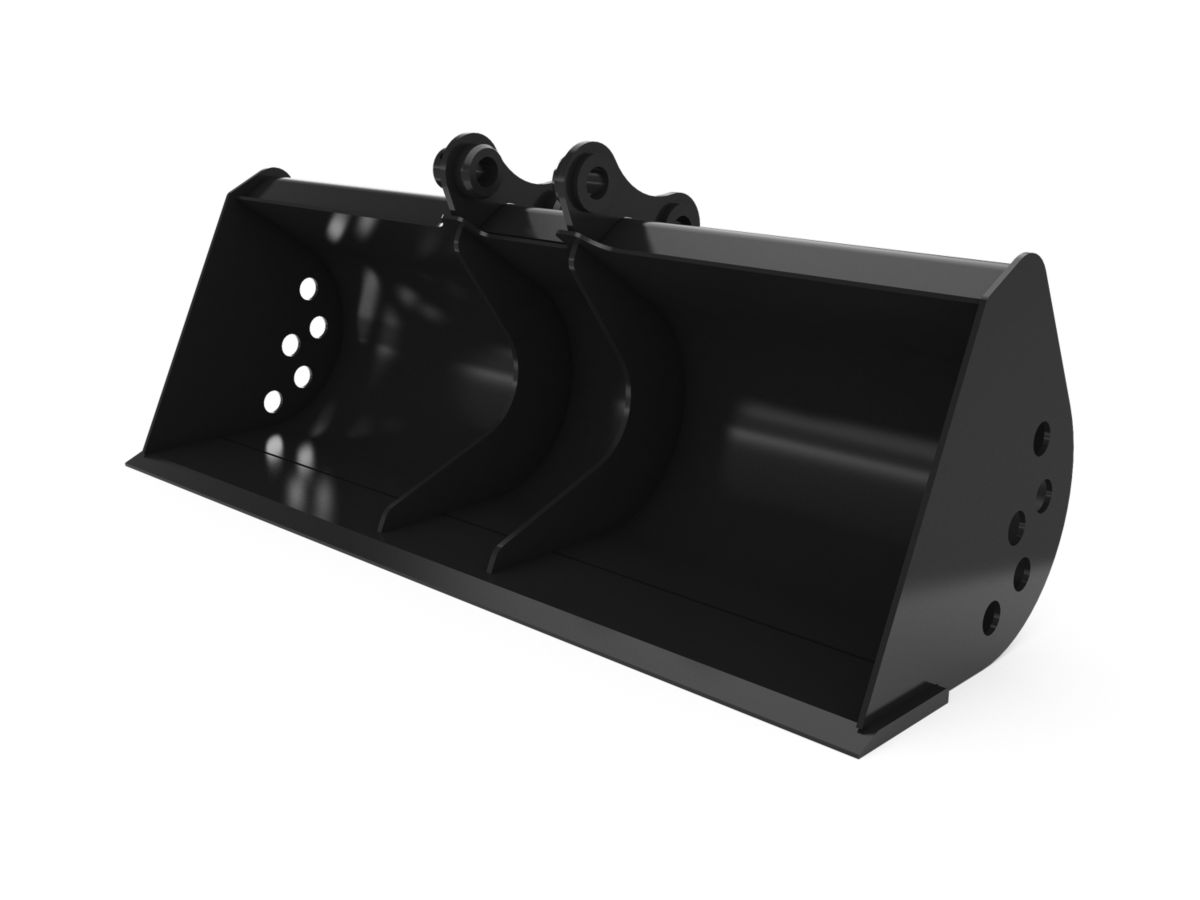

Cat Mini Excavator attachment options let you get more out of your machines. Browse our attachment offerings to find the ones that are right for your business.
The 300.9D VPS with HPU300 features Dual Mode Selection for a choice of diesel or electric power. This innovative machine delivers zero emissions from electrical supply, low noise, superior power and control. Easily change from diesel to electric power.Both indoor and outdoor jobs are accessible with the under 1000 kg (2,205 lb) weight making trailer transportation between sites easy.
An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings.
A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.
Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.
A range of tools is available to take advantage of the machines versatility. All tools are matched to the machine to optimize performance and deliver excellent value through high productivity and long life.
Cat Mini Excavator attachment options let you get more out of your machines. Browse our attachment offerings to find the ones that are right for your business.
300.9 D VPS2399lbs (1088kg)
JCB 8008 CTS2094lbs (950kg)
